Heathrow Custom Homes
A custom home, documented end to end.
Heathrow Custom Homes is a 6,177 square foot single family residence in Longwood, Florida, documented as a complete permit set for submission.

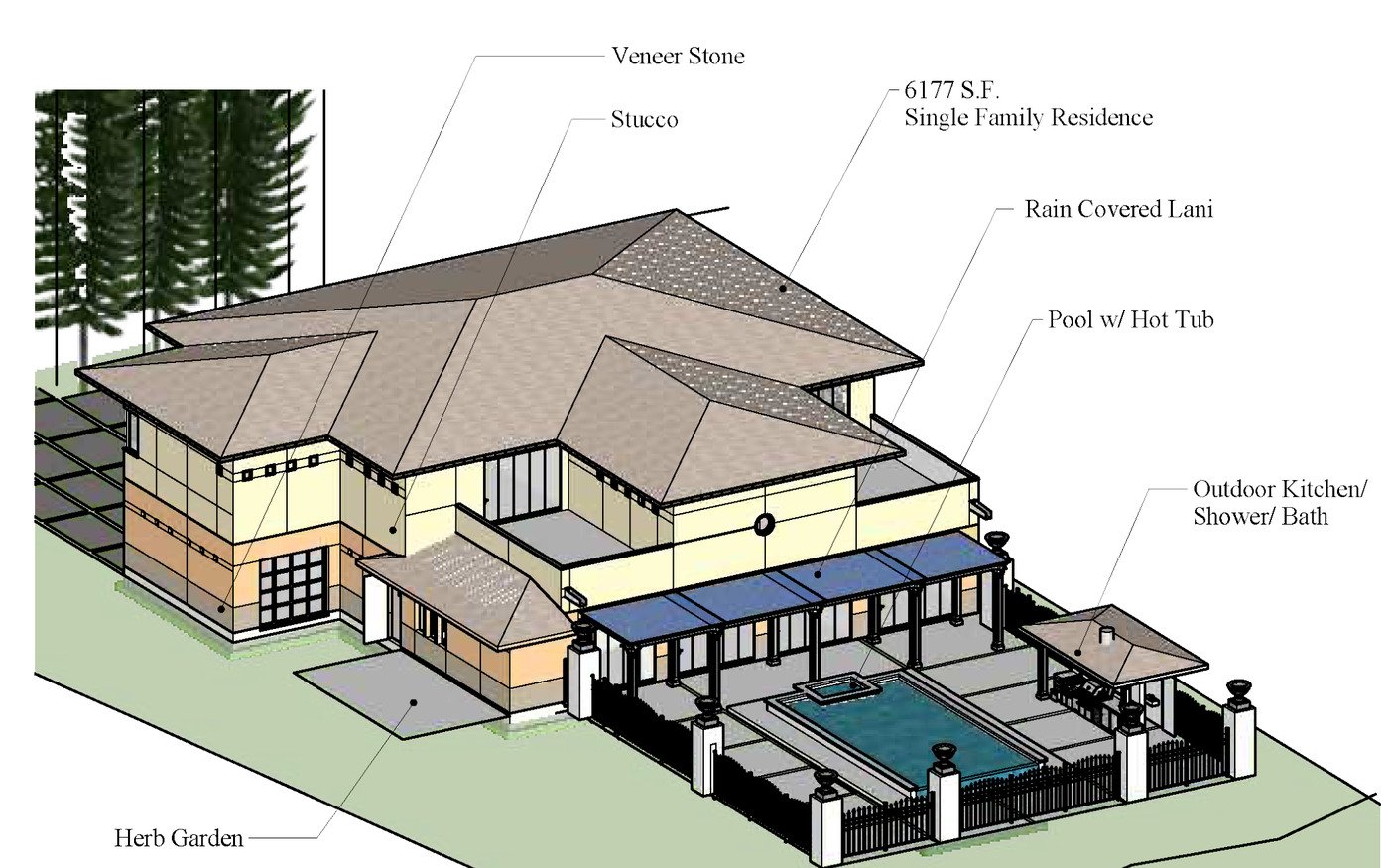

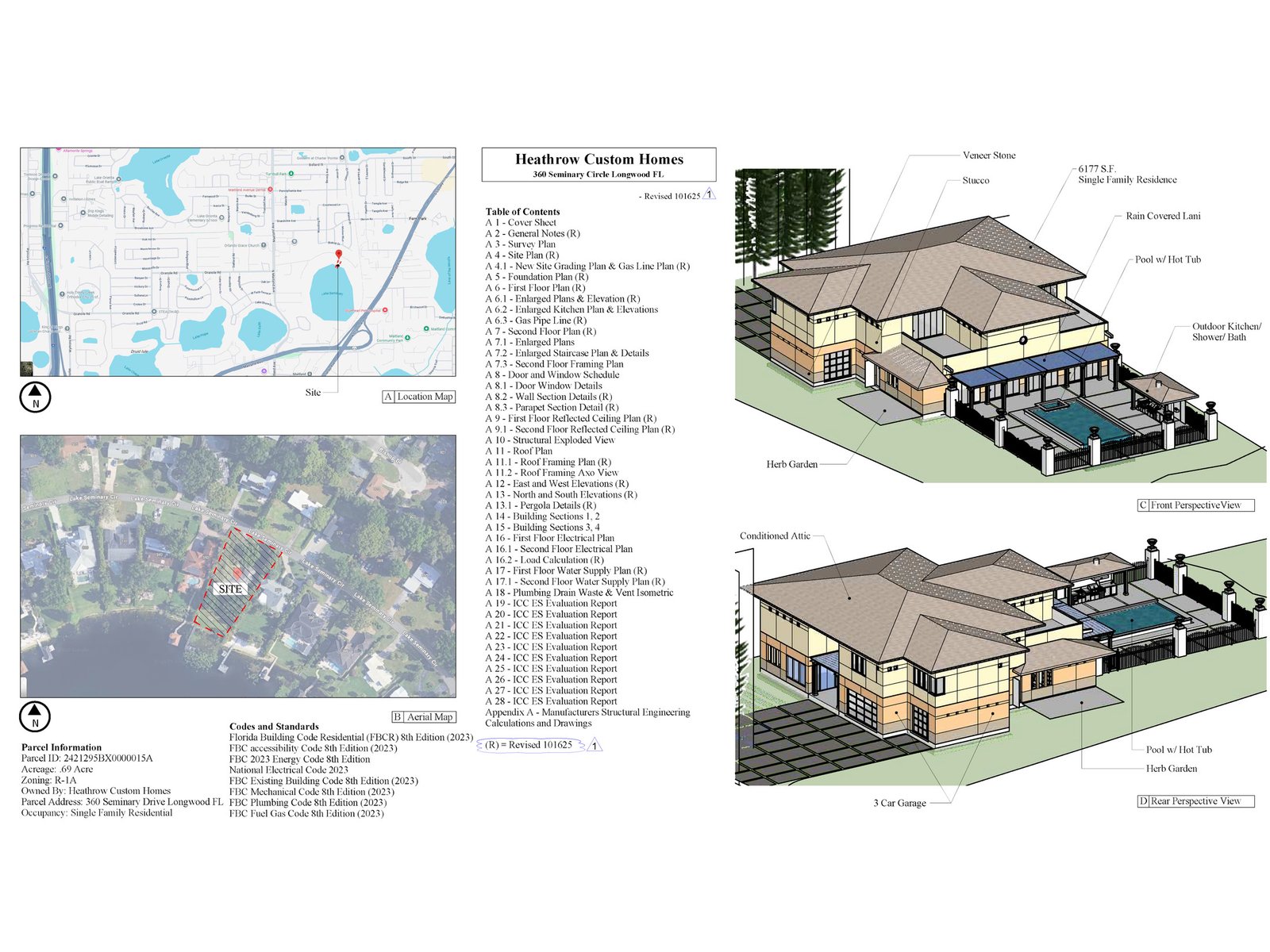

The title sheet establishes the site through location and aerial mapping, parcel information and the codes the set is drawn to, alongside perspective views identifying the stucco and veneer stone finishes, the rain covered lanai, the pool with hot tub, the outdoor kitchen and shower and the herb garden.

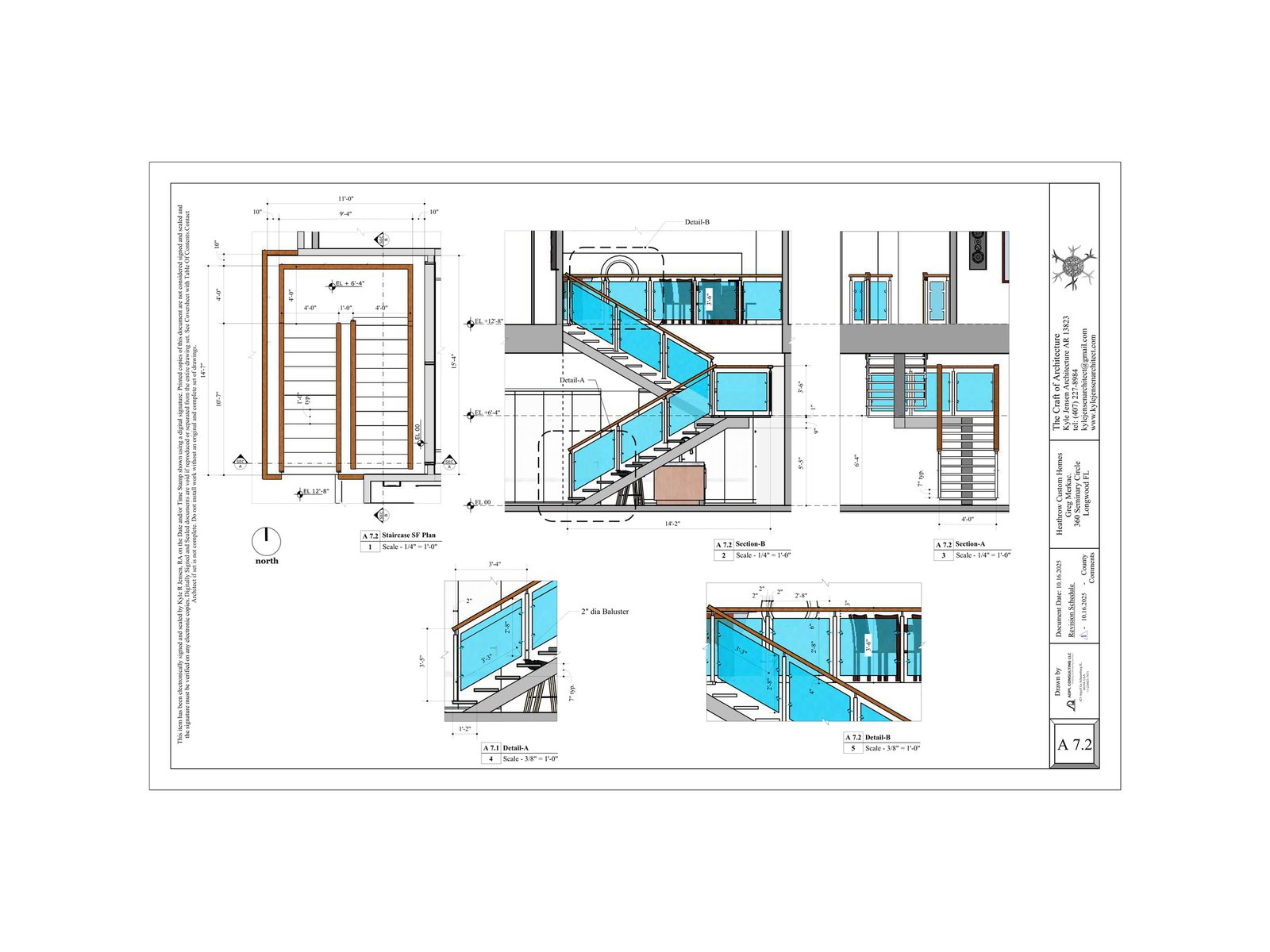

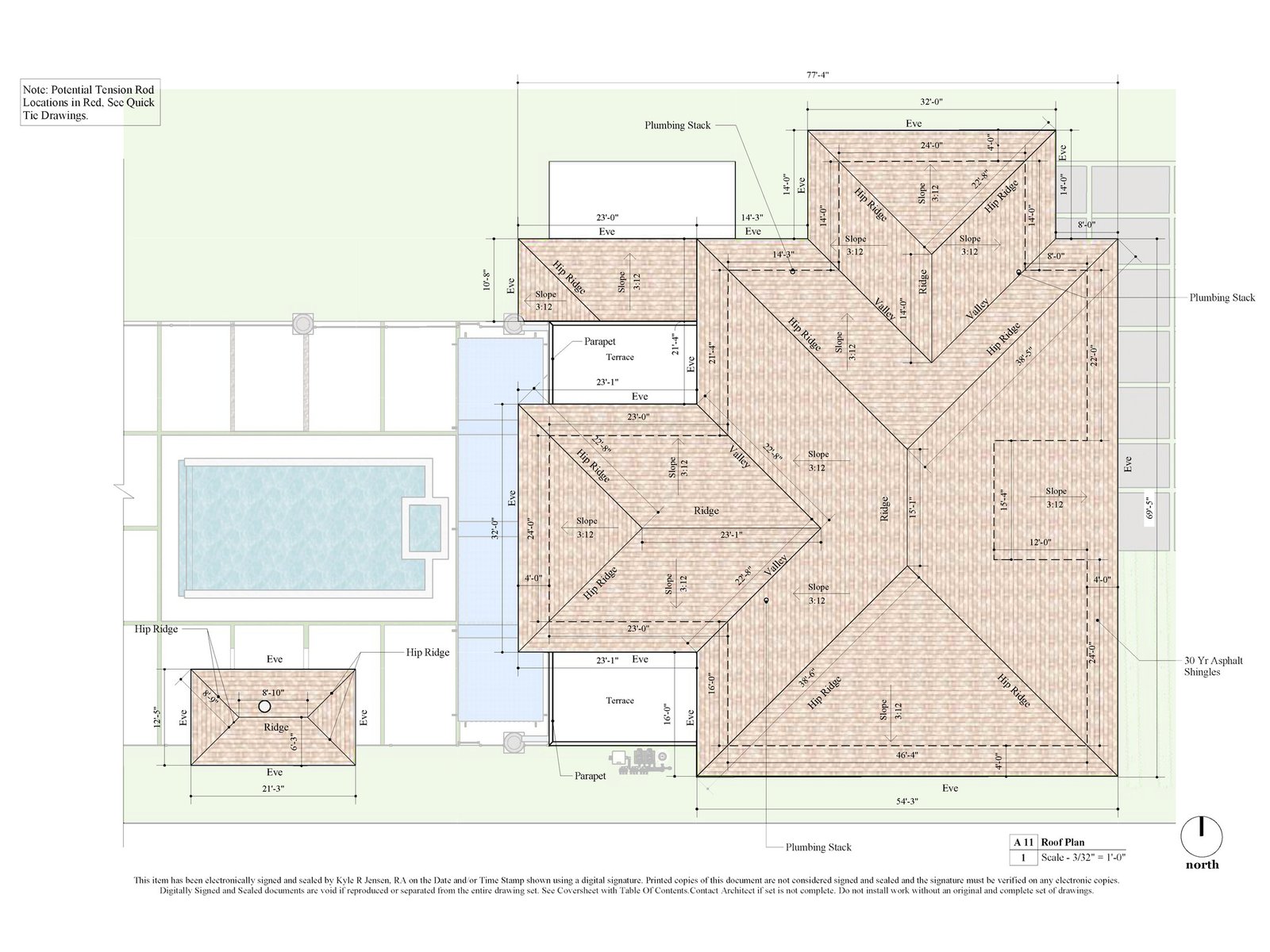

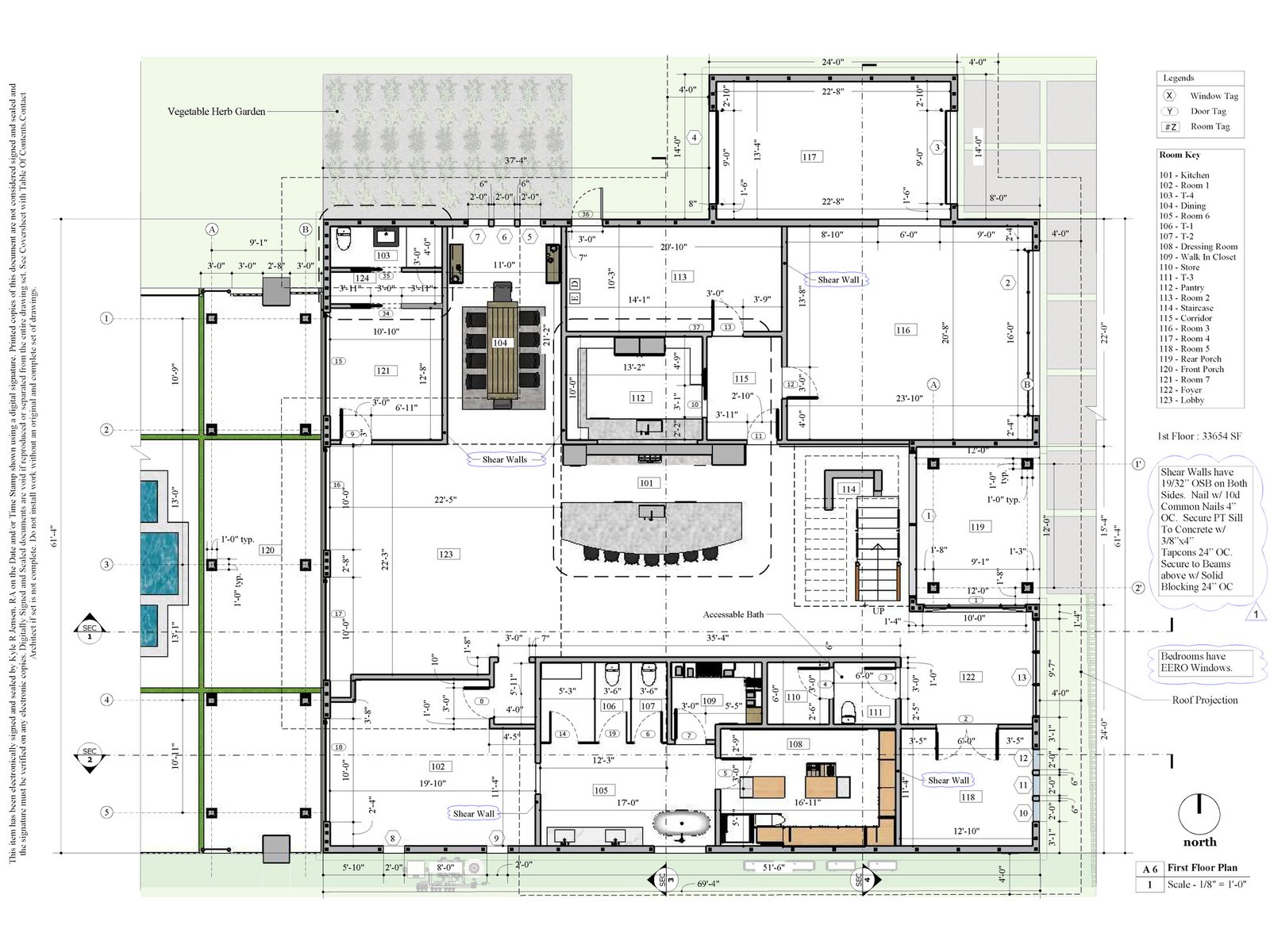

Inside, the floor plan is dimensioned and zoned across the living, sleeping and service wings. Stair and bathroom details resolve the tighter conditions at a larger scale, and the roof plan sets out the hip geometry over both the house and the pool deck.

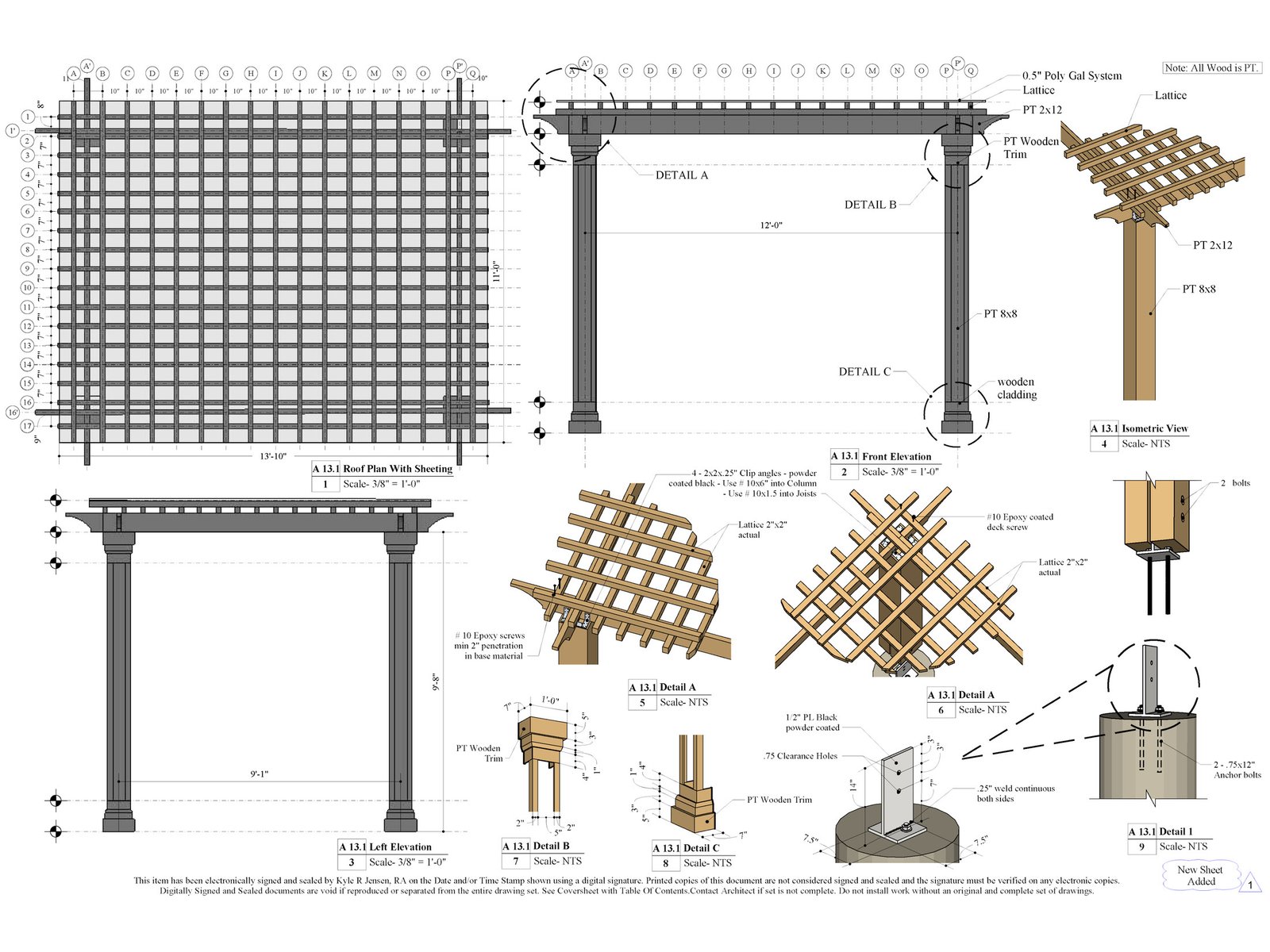

A separate component package details the pergola: plan, elevation and section through the structure, with connection details for the beams, rafters, brackets and column bases.
