William's House

William's House is documented as a complete package covering the residence, its outbuildings and the schedules that tie the two together.

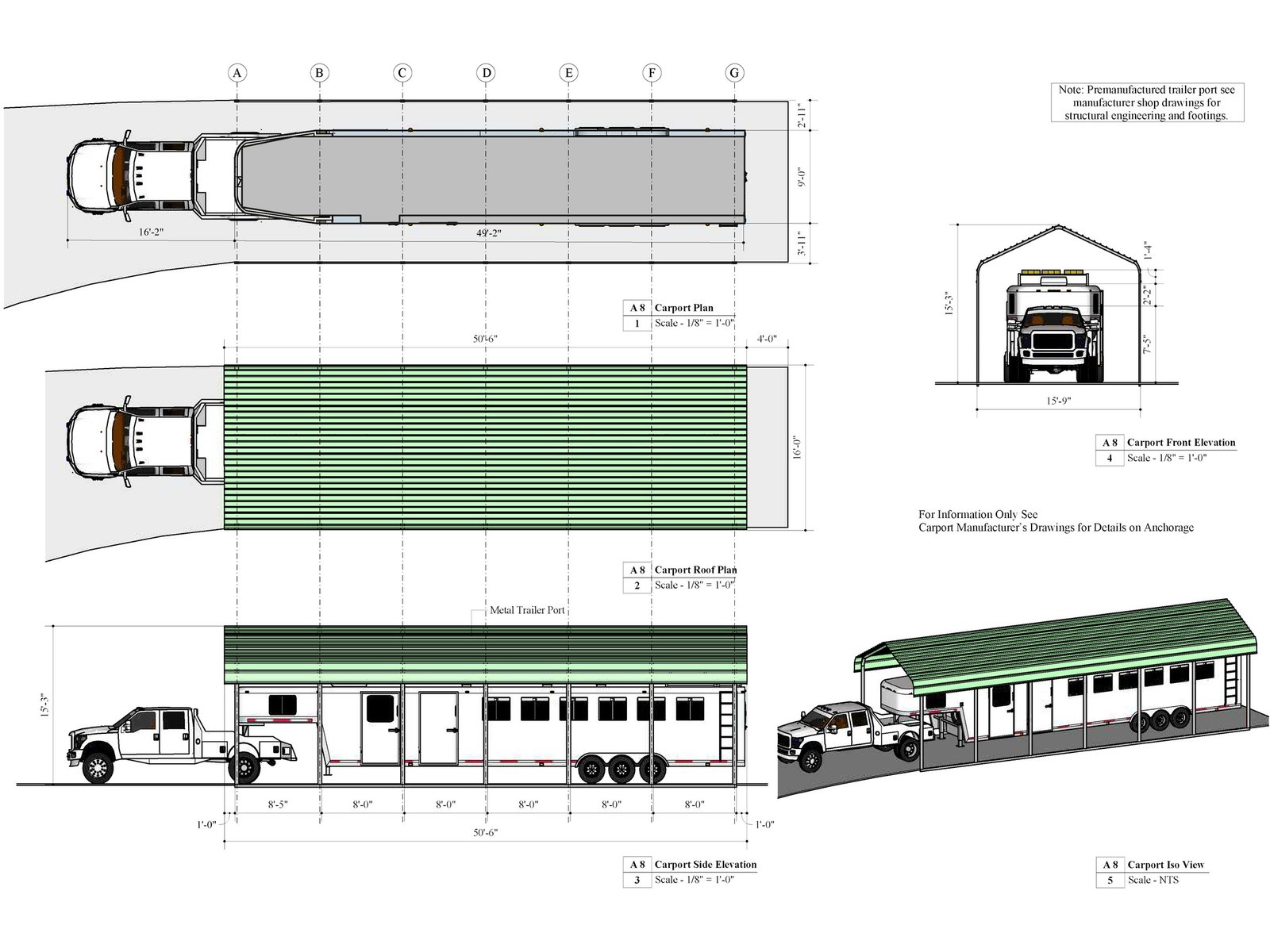

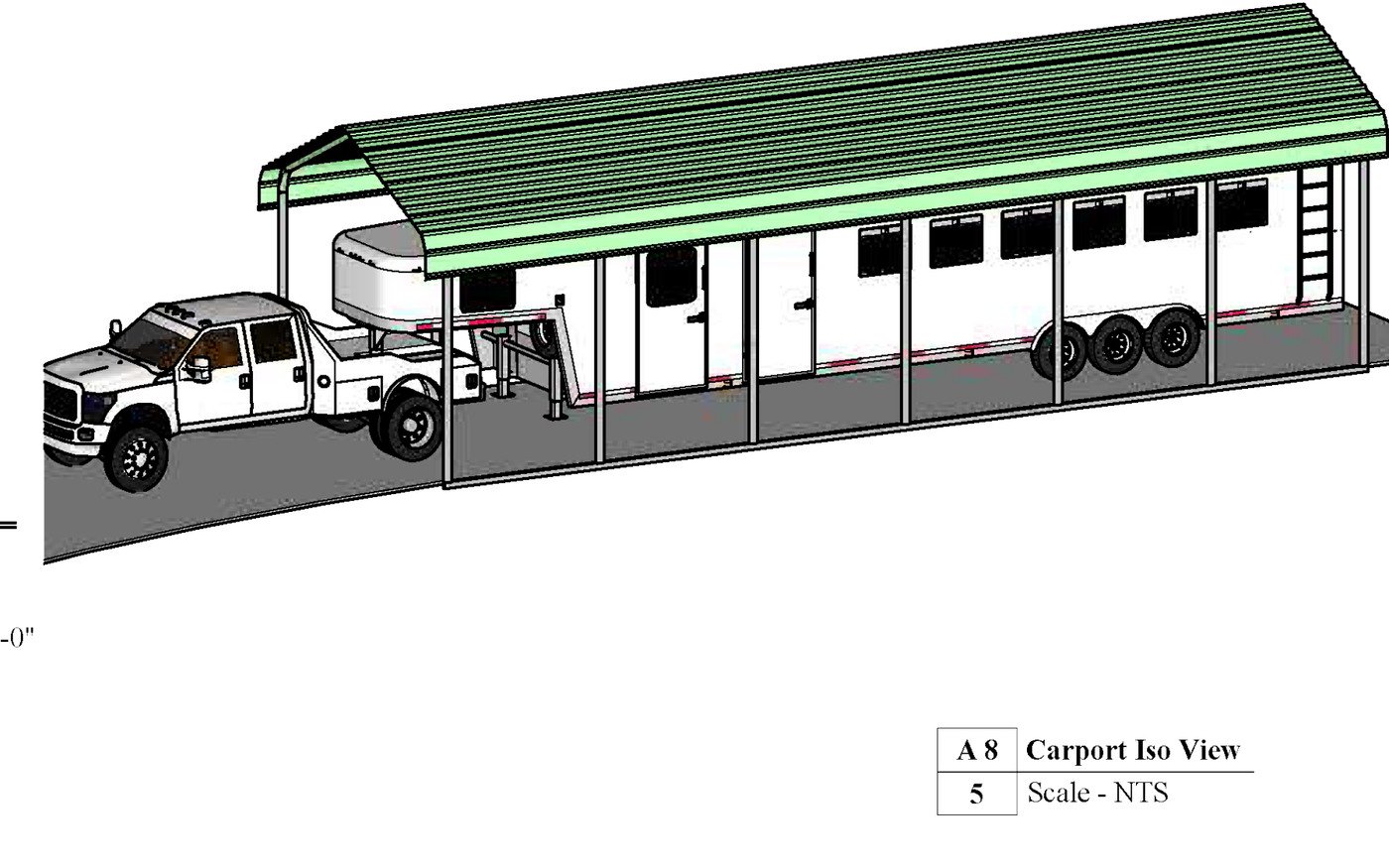

A metal-roofed RV carport is drawn in plan, roof plan, front elevation and side elevation, dimensioned around the vehicle and trailer it houses, with an isometric view establishing the structure in context and a note referring anchorage back to the manufacturer's own drawings.

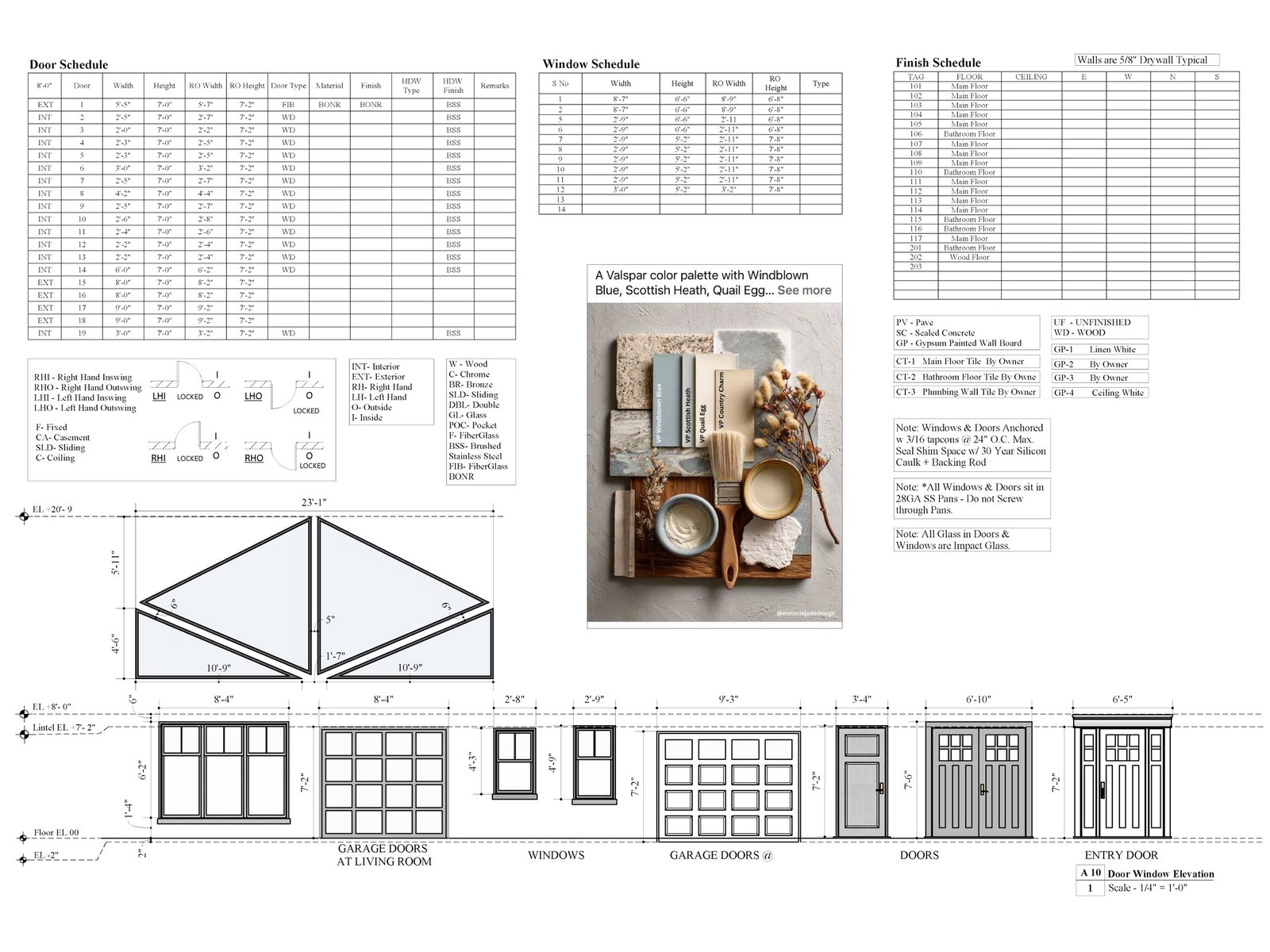

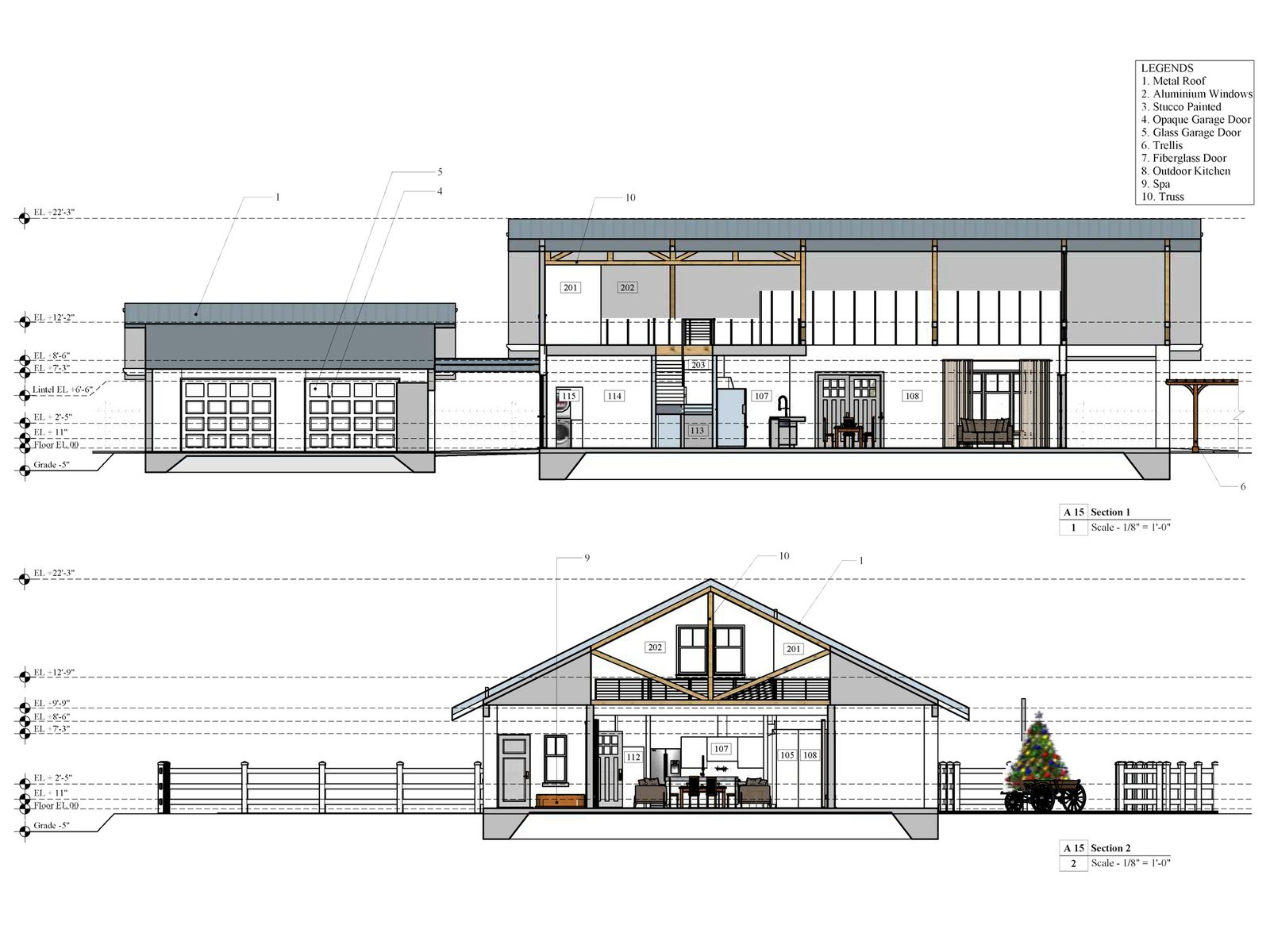

Door, window and panel schedules are set out sheet by sheet with elevation thumbnails for every type, alongside a finishes reference. Building sections then resolve the roof geometry, ceiling heights and the interior volumes across both structures.
